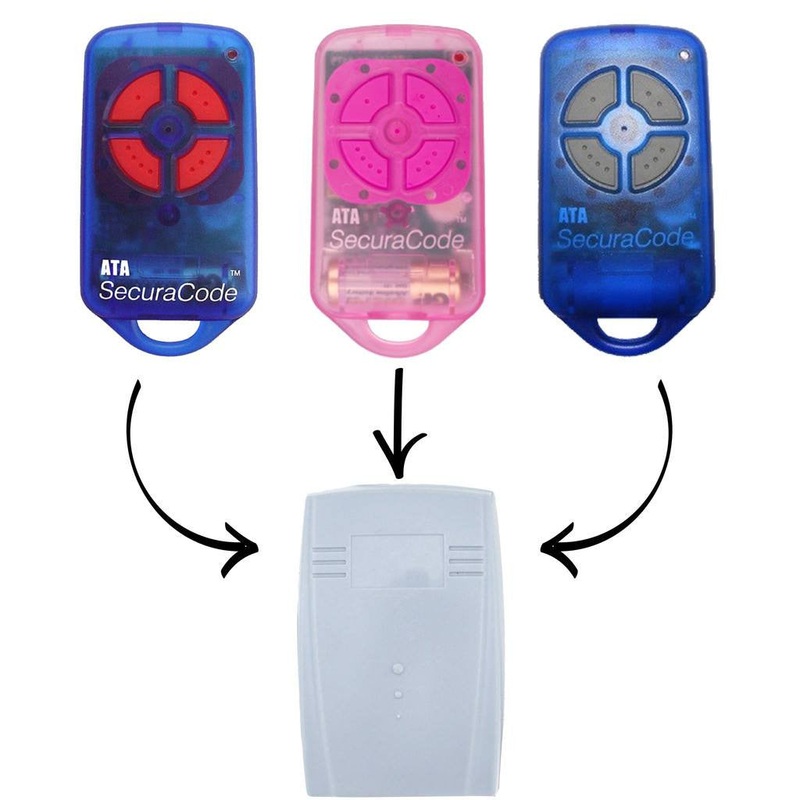

ATA PTX4Garage/Gate Receiver

Frequency: 433.92 MHz

Capacity: 500 remotes

Channels: 2

Dimensions: 60W x 95H x 30D mm

Voltage: 12-24V

For compatible remotes for this receiver please Click Here

Please note: We recommend to have this receiver installed by a professional garage installer.

Terminal/Wiring Guide:

V+(receiver) > usually called 12V, 24V V+ (motor)
GND(receiver) > usually called COM, Common, GND, 0V (motor)
CH1 – Left(receiver) > usually called PB, WB, OSC (motor)
CH1 – Right (receiver) > usually called COM, Common, GND, 0V (motor)

Please Note:Receivers are not included with instructions or wires and there will be no specific instructionson how to wire/connect this to your motor. You must cross reference the guide above with your motor manual. For easy DIY receiver upgrade, please refer to our receiver upgrade kits.

Please Note:All receiver are recommendedto be installed by a professional
