ATA Smart Solar Power Gate/Garage System
Solar Manual With the advance of solar technology, it makes great sense to save money, reduce your carbon footprint, and simplify the complexity of some installs.Your garage door or gate opener can be powered continually using the suns energy throughATA's
Solar Manual
With the advance of solar technology, it makes great sense to save money, reduce your carbon footprint, and simplify the complexity of some installs.
Your garage door or gate opener can be powered continually using the suns energy throughATA’s SmartSolar Ready Solar Power system. The systems efficient design requires only a single solar panel per opener, and incorporates a battery system so your opener works at night or during bad weather.

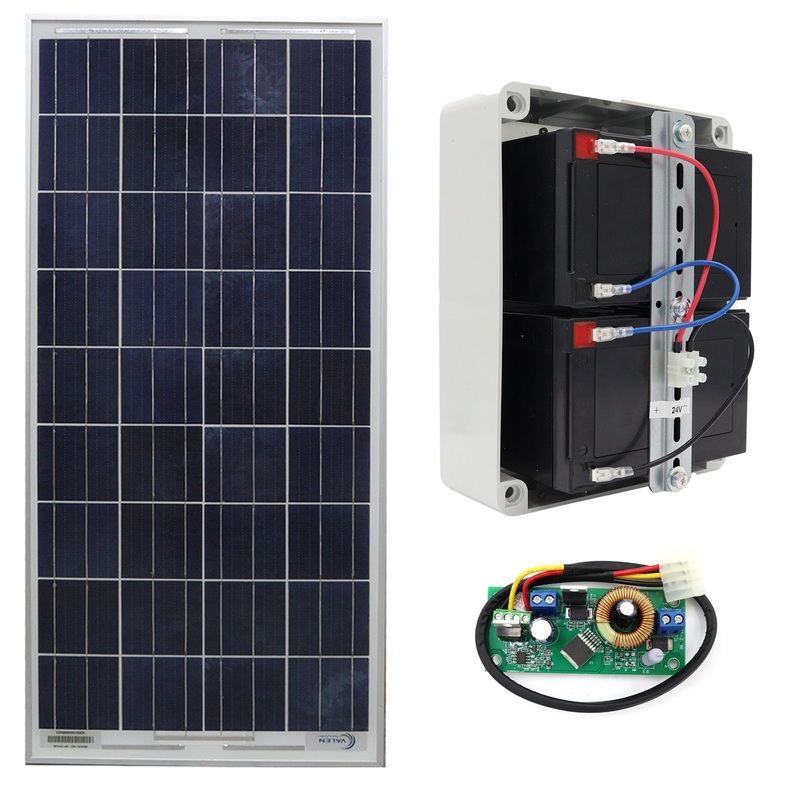

Includes:1 x SolarPanel – 30 WATT STP030-12/Lb1 x BatteryPack (2 X 12 Ah) – Includes Weatherproof Box1 x ChargerBoard (WithHarness)1 x Accessory Pack1 x Installation Instructions
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer’s website or in your user manual
Compatible With:
- GDO-6 EasyRoller Gen2
- GDO-8 Shed Master
- GDO-9 Enduro Gen2
- GDO-9 Dynamo Gen2
- Elite Swing Gate (with DCB-05)
- DCB-05 Gate Control System
- NeoSlider NES-500/NES-800
- GDO-10v2/v2L2/v3 Toro
| SmartSolarV2 Technical Specifications* | Garage Door | Sliding Gate | Swing Gate |
| Load Voltage | 24 | 24 | 24 |
| Load Continuous Current | 3 – 5A | 5A | 5 – 10A |
| Number of Cycles per Day | 10 | 10 | 10 |
| Average Cycle Time (Opening and Closing) | 40 seconds | 90 seconds | 72 seconds |
|
Max. Standby Current Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
100mA 180mA – |
100mA 180mA – |
100mA 180mA 260mA |
|
Average total consumption current per day Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
2.75 – 3Ah 4.66 – 4.8Ah – |
3.7Ah 5.55Ah – |
3.4 – 4.4Ah 5.31 – 6.3Ah 7.23 – 8.23Ah |
|
Average total consumption current per hour Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
0.11 – 0.13A 0.194 – 0.2A – |
0.16A 0.23A – |
0.14 – 0.18A 0.22 – 0.26A 0.3 – 0.343A |
| Recommended storage battery capacity / voltage | 10.5Ah/24v | 12Ah/24V | 12 – 18Ah/24V |
| Wire Gauge and Length from Battery to Charger board (max) | 18AWG, 3m | 18AWG, 3m | 18AWG, 3m |
| Solar panel average rated output generation time per day (winter months) | 4 hours | 4 hours | 4 hours |
| Solar Panel Output voltage / current | 18V / 1.19A | 18V / 1.75A | 18V / 1.75A |
