ATA Solar Neoslider NES-500 Sliding Gate Motor/Opener
Motor Manual Motor BrochureSolar Manual The next generation ofgate openershas arrived.TheNeoSlider500 delivers increased gate weight capacity and will operate the majority of residential sliding gates in Australia.NeoSlider 500 is perfect for residential g
Motor Manual
Motor Brochure
Solar Manual
The next generation ofgate openershas arrived.TheNeoSlider500 delivers increased gate weight capacity and will operate the majority of residential sliding gates in Australia.
NeoSlider 500 is perfect for residential gates up to a weight of 500kg and a width of 6m. This powerful unit will operate the majority of residential gates in Australia.
Thispowerful unit combines clever electronics and robust mechanics to make residential sliding gate automation simple and secure.Featuring a variety of operating modes, custom settings, numerous inputs to interface with devices such as intercoms, and a service indicator.
Smart Phone Control is available as an upgrade option. This innovative feature allowsyou to control and monitor your gate remotely from your smartphone – from anywhere as long as wifi is within range.
Also offering a wide range of accessories to choose from, such as safety beams for to ensure the gate does not close if there is something in the way, backlit digital keypads for added convenience and secure access, battery back up.

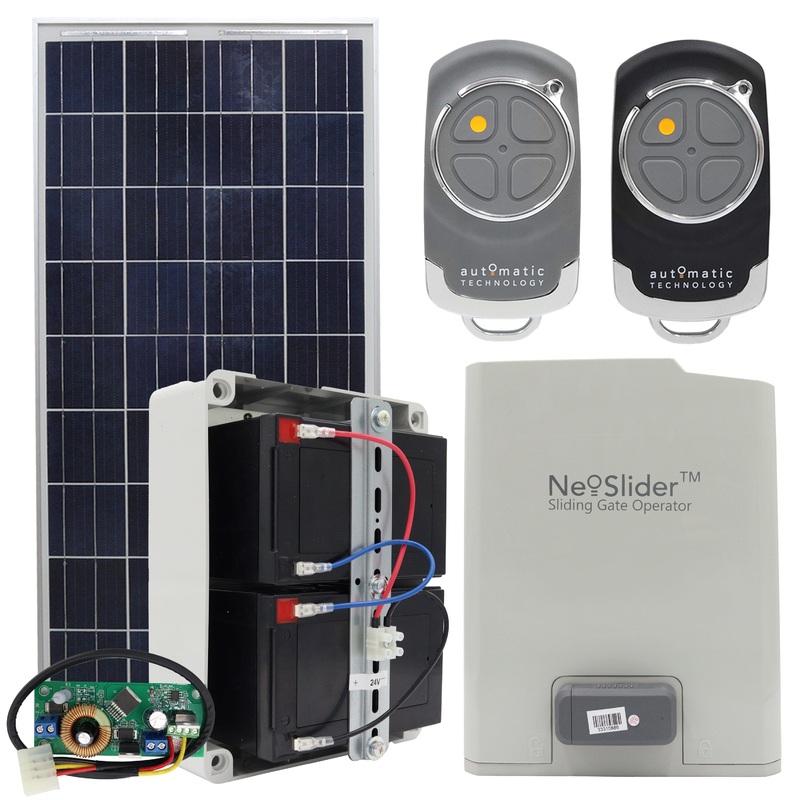

Includes ATA Neoslider NES-500 Sliding Gate Motor:1 x ATA NES500 Gate Opener/Motor2 x PTX-5v2 Remotes2 x Metal Feet1 x Metal Plate1 x Wired External Antenna1 x Screw & Bolt Kit1 x Instruction Manual
Please note the gear rack is not included and can be purchased in 1m lengths by clicking here.
Includes ATA Smart Solar Power Gate/Garage System:1 x SolarPanel – 30 WATT STP030-12/Lb1 x BatteryPack (2 X 12 Ah) – Includes Weatherproof Box1 x ChargerBoard (WithHarness)1 x Accessory Pack1 x Installation Instructions
*Warranty Disclaimer
*Please Note: To receive full manufacturer warranty, you must be able to provide proof of install by a garage installer and the door must have a regular servicing history as per the manufacturer terms and conditions which can be found on the manufacturer’s website or in your user manual
NES-500 Specifications
| Kit Type | Residential |
| Maximum gate weight | Up to 500 kg |
| Maximum gate width | 6 m |
| Driving force | 280 N |
| Power Supply Voltage | 230 240 Vac 50Hz |
| Standby power | 2.8W |
| Travel speed | 0.2m / second |
| Operating ambient temperature | -20 to +50C |
| Dimensions (w x h x d) | 275mm H x 250mm W x 170mm D |
| Weather resistance rating | IP44 |
| Motor type | 24 DC Permanent Magnet |
| Limit switch type | Mechanical |
| Type of pinion | M4-T14 |
| No. of Safety Beam Inputs | 2 |
| Transmitter storage capacity | 30 x 4 button Transmitter |
| Warranty* | 2 years / 5,000 cycles |
Smart Solar Specifications
| SmartSolarV2 Technical Specifications* | Garage Door | Sliding Gate | Swing Gate |
| Load Voltage | 24 | 24 | 24 |
| Load Continuous Current | 3 – 5A | 5A | 5 – 10A |
| Number of Cycles per Day | 10 | 10 | 10 |
| Average Cycle Time(Opening and Closing) | 40 seconds | 90 seconds | 72 seconds |
|
Max. Standby Current Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
100mA 180mA – |
100mA 180mA – |
100mA 180mA 260mA |
|
Average total consumption current per day Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
2.75 – 3Ah 4.66 – 4.8Ah – |
3.7Ah 5.55Ah – |
3.4 – 4.4Ah 5.31 – 6.3Ah 7.23 – 8.23Ah |
|
Average total consumption current per hour Without P.E. Beams With P.E. Beams With 2 x P.E. Beams |
0.11 – 0.13A 0.194 – 0.2A – |
0.16A 0.23A – |
0.14 – 0.18A 0.22 – 0.26A 0.3 – 0.343A |
| Recommended storage battery capacity / voltage | 10.5Ah/24v | 12Ah/24V | 12 – 18Ah/24V |
| Wire Gauge and Length from Battery to Charger board (max) | 18AWG, 3m | 18AWG, 3m | 18AWG, 3m |
| Solar panel average rated output generation time per day(winter months) | 4 hours | 4 hours | 4 hours |
| Solar Panel Output voltage / current | 18V / 1.19A | 18V / 1.75A | 18V / 1.75A |
