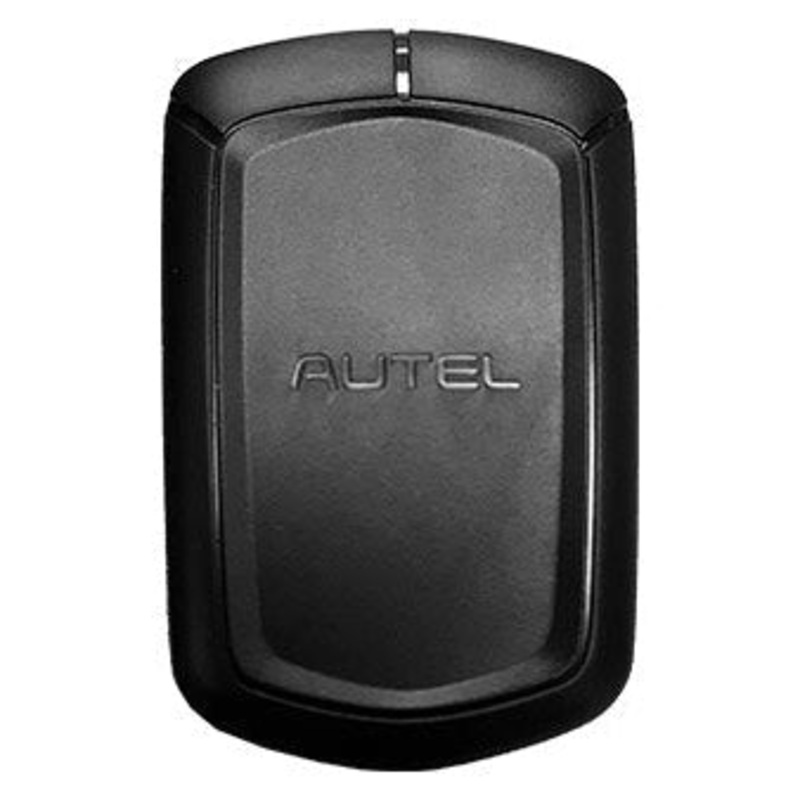

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

AUTEL APB112Features:

• Smart key simulator
• Compatible with IM608, IM508, and MX808IM
• Compact but would need to be used with the XP400
• Supports 46, 4D data collection
• Supports46 smart key password calculation
• Supports46 chip simulation
• SupportsToyota 4D (94/ D4, 98) smart key simulation
• SupportsToyota H (88/ A8, A9, 39) smart key simulation
• Collects data from the ignition coil
• Identify ignition coil troubles
• Decode vehicle key chip data
• Simulate vehicle key chip (ex – 4D chip)
• Toyota/Lexus smart key all key lost
• Chip decoding (Hyundai 46)

Please Note:Must be used with an Autel diagnostic tool

Please Note: Cannot be used with the XP200

Status Indicator Light List

• Blue Solid Light– the power supply is working properly and in default state
• Green Flashing Light– the data interaction status
• Red Flashing Light– the status of upgrading
• Red Solid Light– the boot status
