IMPORTANT: LIMITED STOCK. Please call us at 866-690-4308 to check availability.
This programmer is sold to automotive professionals only (like car locksmiths and dealers). We require business license verification before we ship.

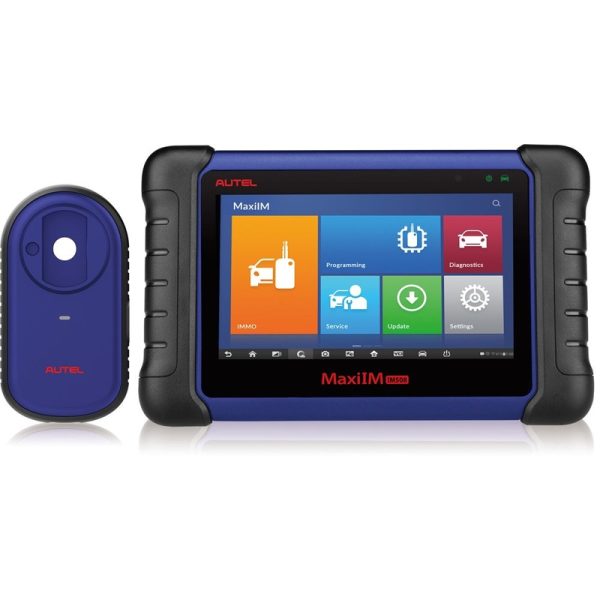

MaxiIM IM508 (formerly known as Auro IM100) is a super fast, user friendly, and portable immobilizer, key and remote programmer. The Android based touchscreen tablet provides a powerful quad-core processor, intuitive design interface. Equipped with the XP 200 key programmer, IM 508 provides extraordinary service functions for the auto immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for car locksmiths, auto shops and technicians who demand affordable and powerful IMMO and OEM level diagnostic services at discount price.
You can check vehicle coverage right here: Autel Vehicle Coverage Check
IMMO & KEY PROGRAMMING:
Read PIN / CS (All Key Lost)
Key Generation
Key Learning / Remote Learning
Backup / Restore IMMO data
IMMO ECU Reset / Adaptation / Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW, AUDI MQB Key Learning, 48 Transponder (96-Bit) Add Key, All Key Lost, A6 All Key Lost
XP200 Key & Chip Programming:
Key Read / Write
EEPROM / MCU Read / Write
All Systems Diagnostics:
OE Level Diagnostics
80+ Vehicle Makes
Shop & Data Manager Apps
Advanced Maintenance Services:
EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID relearn
Features:
Powerful Cortex-A9 processor
7? 1024×600 LCD capacitive touchscreen
Internal reliable 32GBMemory
Android Operating System for fast boot-up and multitasking
Powerful combination of key programming/all system diagnostics/advanced maintenance services
Smart Mode for guided and automated key learning
Expert Mode for advanced key learning
Read PIN/CS (all key lost) , key generation, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Transponder read/write, EEPROM/MCU read/write
Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
Specifications:
Operating System: AndroidTM 4.4.4
Processor: Cortex-A9 processor (1.6 GHz)
Memory: 32GB
Display: 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity: Mini USB 2.0; USB 2.0; Wi-Fi; Micro SD card (supports up to 32GB)
Sensors: Ambient light sensor for brightness auto changing
Audio Input / Output: Input: N/A
Output: buzzer
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life: Around 4.5 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.: 0 to 50?C (32 to 122?F)
Storage Temp.: -20 to 60?C (-4 to 140?F)
Operating Humidity: 5% – 95% non-condensing
Net Weight: 788 g (2.42 lb.)
Supported Automotive Protocols: ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
For more programming information please go to the following link Autel IMMO & Key Programming ).What’s Included
- IM508 Tablet
- XP200 Key Programmer
- Cables & Cords
- USB Adapter
- Carry Case
- 30 days 100% satisfaction guarantee and return policy included
