Control Board Manual

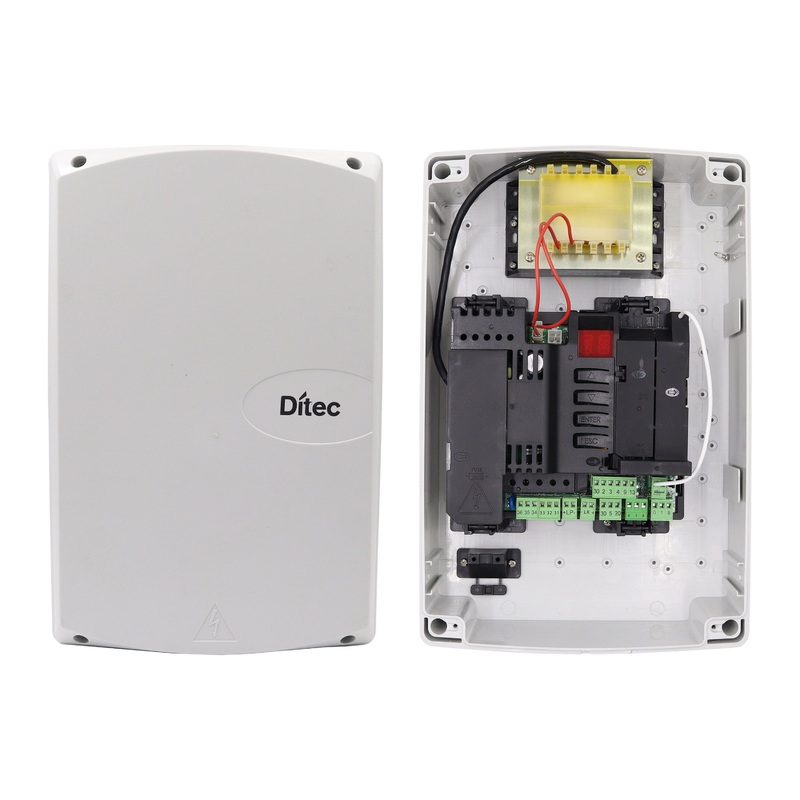

Elevate your gate’s functionality with the Ditec LCU40H Control Board, built to deliver efficient, customisable automation for residential and light commercial gates. This control board is renowned for its durability, precision, and advanced programming capabilities, making it ideal for various gate applications.

Key Features:

• Virtual Encoder Technology: Manages speed, deceleration, and obstacle detection with precision.
• IP55-Rated Enclosure: Built to withstand tough weather conditions.
• Customisable Programming: Adjust speed, force, and other settings for tailored operation.
• Solar Compatible

Technical Specifications:

• Power Supply: 230V~ 50/60Hz
• Motor Output: 24V, 12A max per motor (supports up to two motors)
• Accessory Power Supply: 24V, up to 0.5A
• Stored Radio Codes: Up to 200
• Radio Frequency: 433.92MHz
• Protection Rating: IP55
• Operating Temperature: -20C to +55C
• Dimensions: 238 x 357 x 120 mm

Includes:

• 1x LCU40H Control Board
• 1x Manual

Warranty:12 months

Please Note: For optimal performance and safety, we highly recommend that this control board is installed by a qualified garage and gate technician. Professional installation ensures proper setup, configuration, and compliance with all safety regulations.
