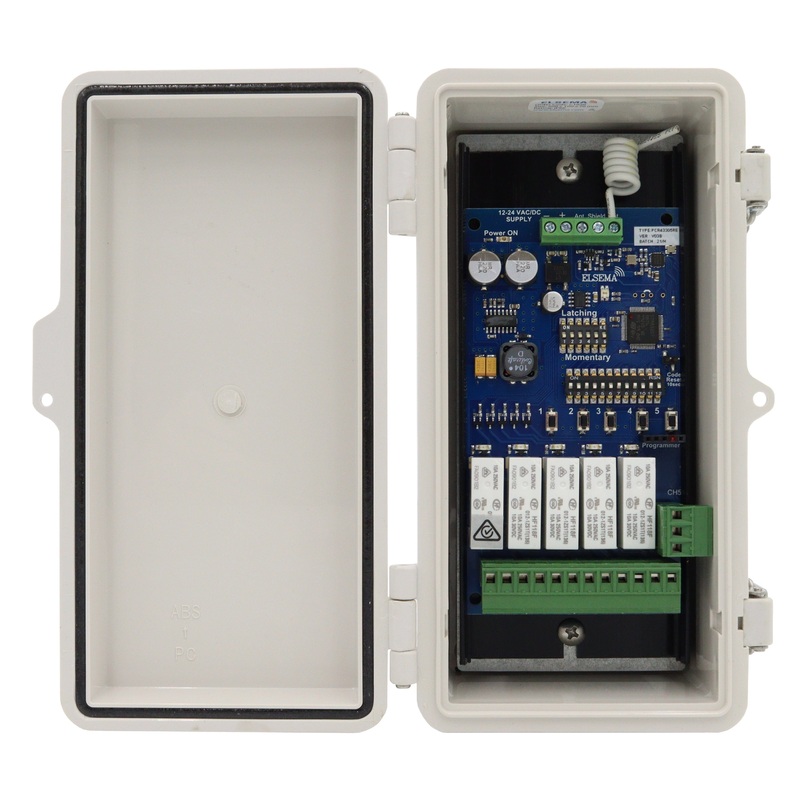

Elsema Pentafob/Pentacode PCR43305RE Receiver

Suitable Remotes:Pentafob & Pentacode

Capacity: 1250 remotes

Channels:5 with relay output

Supply:11-28 AC/DC

Weight:0.48 kg

Dimensions: 130mm x 70mm x 20mm

Features:

• 12-way dip switch coding or one of over 17 billion encrypted codes.
• Crystal controlled for high reliability
• The receiver input stage is highly sensitive
• The modes include the following: Momentary, latching and security latching
• E version available with C1020 case
• Optional QM150 bracket available for easy mounting to cases or walls

Specifications:

• Supply Voltage:11-28 AC/DC
• Current Consumption: 15 mA standby
• Frequency: 433.10-434.70 MHz
• Relay Output: Five change over relay outputs, rated at 10 Amps / 240VAC
• Antenna: Elsema ANT 433MHz series
• Useable Transmitters: All Elsema typePCK433 & FOB433series

For compatible remotes for this receiver pleaseClick Here

Please note: We recommend to have this receiver installed by a professional garage installer.

Warranty:2 years
