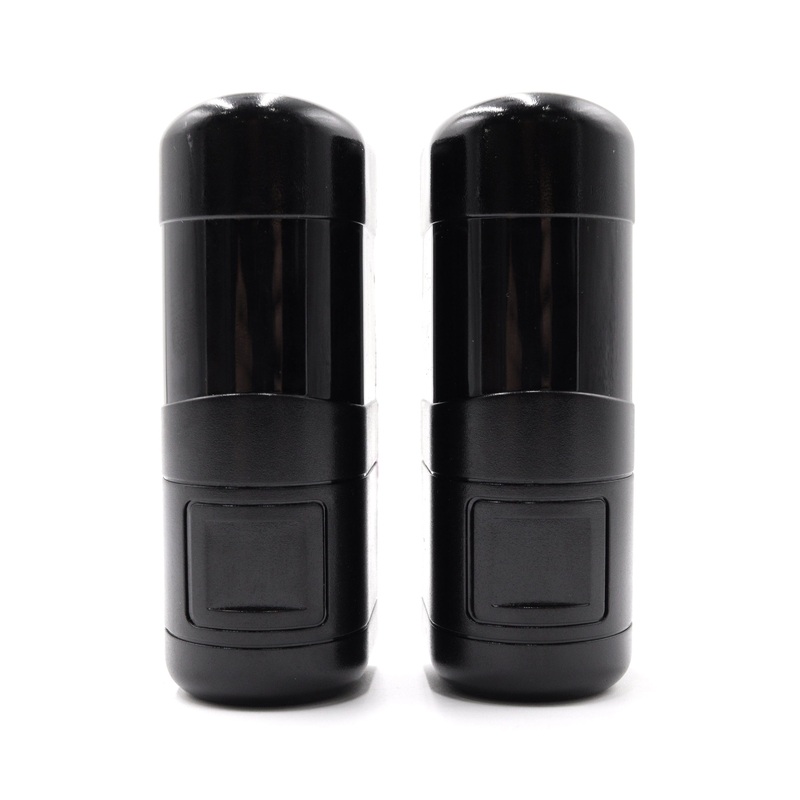

The package includes an infrared transmitter photocell and an infrared receiver photocell, both enclosed in a durable plastic box equipped with a high-power infrared filter. These photocells can be attached to a post by welding or screwing, or directly mounted on a wall using the supplied plugs and screws. Additionally, the connecting cables can be routed through the bottom of the box for a seamless installation.

Technical Specifications:

• Working Voltage:DC/AC – 12-24V
• Working Current: Transmitter: 30mA; Receiver: 50mA
• Infrared Wavelength: 890nm
• Operating Distance: 12M
• Adjusting Angle of PCB:90
• Receiver Relay Contact Output: Max. 1A at 24V DC
• Operating Temperature: -20~+60
• IP:IP54

Includes:

• 1x Transmitter Photocell
• 1x Receiver Photocell
• 6x Self Tapping Screws
• 6x Expansion Plugs
• 2x Post Screws
