The Reflector PE Sensor boasts formidable resistance against sunlight interference, capable of withstanding up to 100,000Lux. It employs cutting-edge optical technology for extended-distance detection. Additionally, it demonstrates top-tier electromagnetic compatibility, offering strong resistance to electromagnetic interference. The sensor comes equipped with short-circuit protection, output protection, and reverse polarity protection, streamlining the wiring process for enhanced convenience.

Technical Specifications:

• Distance: 10M
• Light Source:Red Light 660nm
• Working Voltage:DC/AC – 12-24V
• Current:<40mA
• IP:IP67
• Relay Contact:DC 1A 240VAC/ 30 VDC AC 3A 30VDC/250VAC
• Operating:-25C – 55C
• Power-on Delay:200ms
• Reaction Time:<30ms
• Repeatability:10%
• Ouput Indication:Green light for power indication, red light for output indication
• Protective:Short circuit protection, output protection, reverse polarity protection
• Housing Material:PMMA ABS characteristic plastic, lens PMMA
• Wiring:Standard 2-meter wire output or 6-meter output

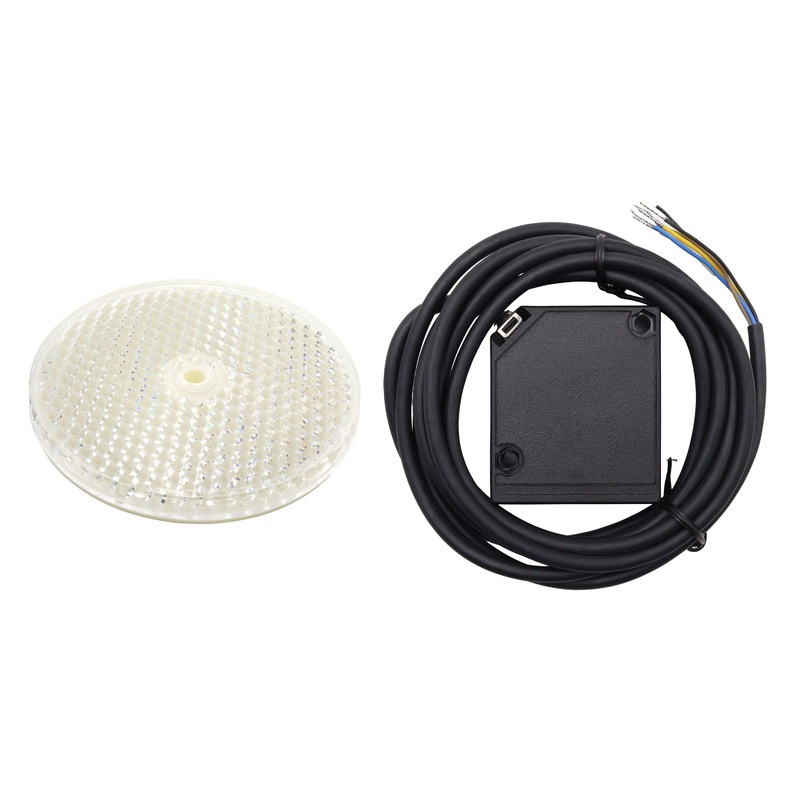

Includes:

• 1x Sensor
• 1x Reflector
• 2x Metal Bracket
• 2x Screws
• 2x Nuts
