The Grifco LS-Drive is the perfect high-cycle operator for sectional doors found in small carparks. Designed for up to 50 cycles per day, it is the ideal automation solution for small multi-tenanted applications. It delivers all the necessary logic configurations without any unnecessary complexity.

• The quiet, powerful drive train delivers smooth and fast door cycles, with soft start and soft stop
• Logic options can be easily configured to open only and timer-to-close
• The operator can be configured to receive a held-open input, making it ideal for fire input panels
• The extremely durable extruded aluminium rail is available in 2 lengths and features a clever mounting method and integrated cable management
• The rail can be easily surface mounted for low ceiling carparks

*Additional purchase of Grifco myQ Gateway and Safety IR Beam accessories required to enable myQ functionality.

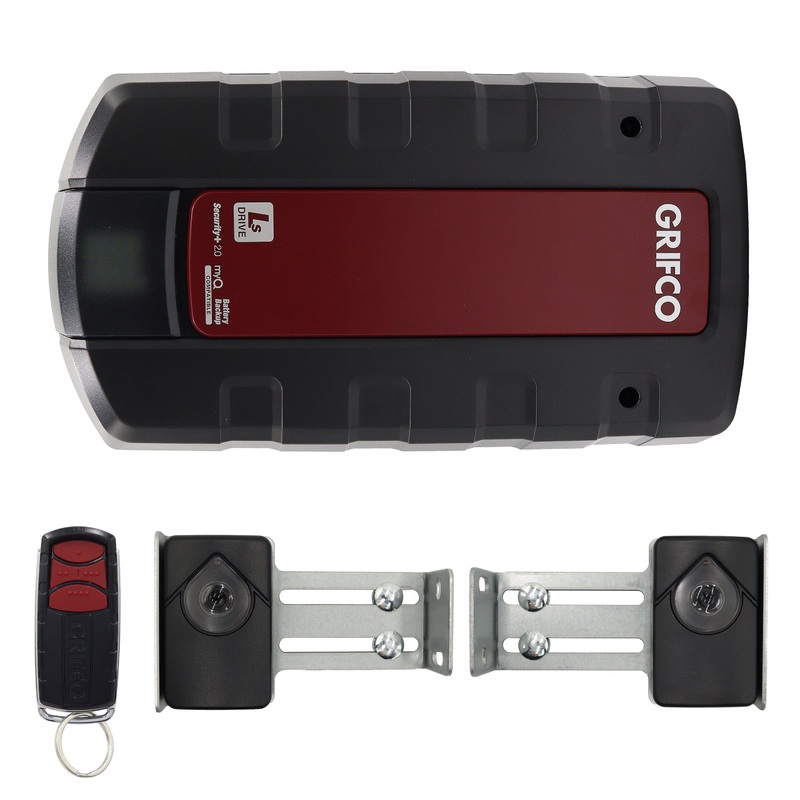

Includes:

• Grifco LS-Drive Motor
• 1x E960G 4-channel keyring transmitters
• 1x Battery Backup Unit
• 1x Aluminium Chain Rail for 2.5m High Door
• Instructions Manual

Product Specifications:

• Main AC Power Supply: 230-240 Vac 50Hz
• Max. Pull Force: 1,200N
• Power: 225W
• Operating Temperature: +5C to +40C

Door Specifications:

• Max Door Height: 3m
• Max Door Weight: 160kg
• Max Lift under Spring Tension: 20kg

• Normal Torque: 8Nm

• Maximum Door Area: Commercial Spring-Balanced Sectional Doors up to 15m

• Max. Door Cycles: 50 cycles / day

Dimensions:

• Operator Length: 370mm
• Operator Height: 100mm
• Operator Width: 200mm

Warranty Disclaimer*

Please note that if installing the motor yourself (DIY Installation) you will not receive any warranty on this item. To receive the full warranty this product must be installed by a certified installer.
