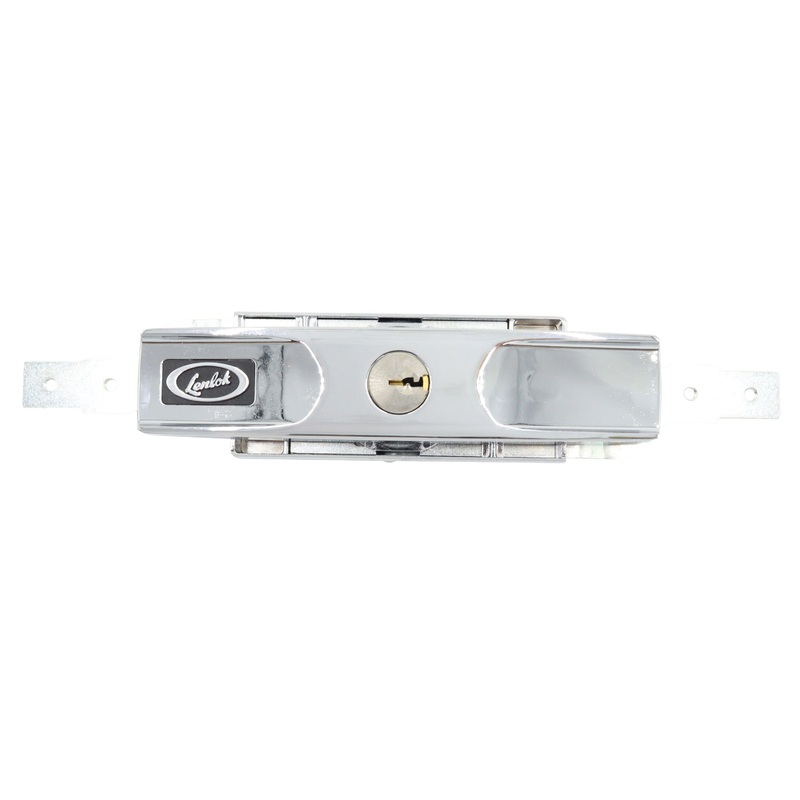

Narrow style version and has a rectangular fascia with dual finger grips.

Includes:
1 x Lock Kit
2 x Keys
1 x Lock Fascia

Features:

• C4 4 pin cylinder tumbler
• C4 4 pin cylinder is LKW5 (LW4) keyway.
• C4 4 pin cylinders includes cam screws only (does not include all other cams & screws)
• Ergonomically designed internal operating knob offers a more positive grip
• Lock body designed for minimum protrusion (smaller than previous Lenlok models)
• Supplied with tape to hold face plate on for easy installation
• Barrel & keys supplied along with cams, cams screws, cylinder screws
• Locking arms have a 19mm throw
• High quality satin chrome finish zinc alloy fascia
• High quality full metal locking mechanism
• Lock body has patented integrated mechanism protectors. These keep the door from applying pressure to the mechanism
• Slide arms are constructed from galvanised steel for increased strength and have threaded holes for the screws making installation easier

Compatibility:

Retrofits to existing market standards (e.g. Lenlok 3321) – Roller door lock retrofit plate for 3321 – Supplied with tape to hold face plate on for easy installation – Adhesive logo which can be replaced with personalised customer logo on request. It can also be flipped 180 degrees for handing of the lock.
