Compatibility:

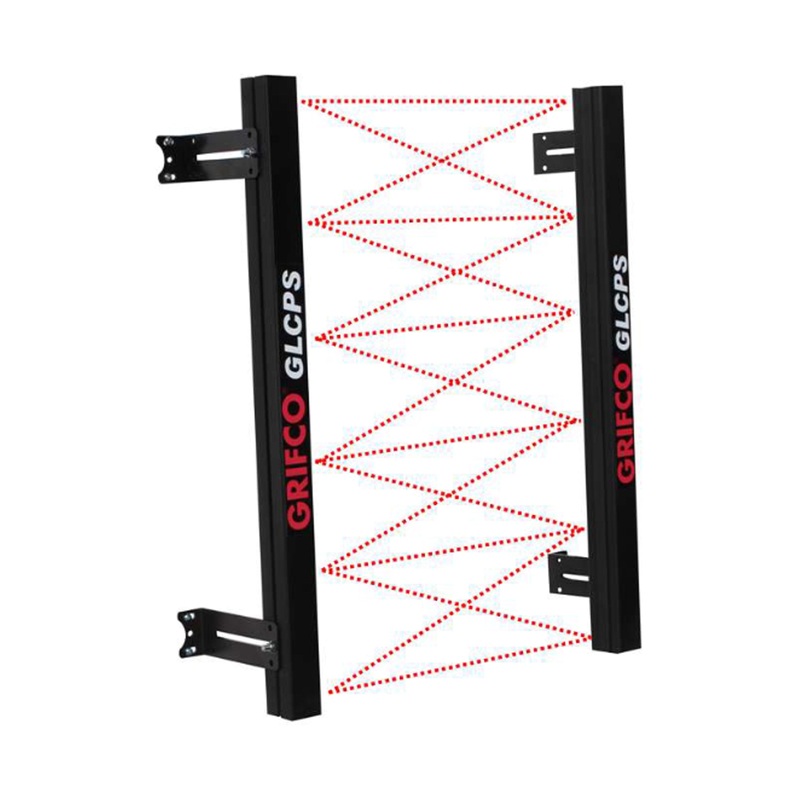

• This Curtain Protector Beams is only compatible with eDrive +2.0

Includes:

• 2 x Housed Light Curtain rails
• 1 x Connecting cable
• 1 x Synchronisation cable (10m)
• 1 x Interface module
• 6 x Mounting Brackets and fasteners

Product Specification:

• Max. Operating Range: 1 – 10m
• Max. Ambient Light: 100 000 Lux
• Aperture Angle at 3m:Tx: 10 and Rx: 20
• Supply Voltage USP: 10 – 30VDC
• Current Consumption at 24VDC: 100mA
• Output:PNP/NPN (push-pull) or FSS
• Output load:100mA, 100nF
• Typ. Res. Time with 32 Elements: 90ms
• Max. Door Speed:2.5m/s
• Status LED RX:Object Detected (Red) / No Object Detected (Green)
• Status LED TX:Power OK (Green)
• Cross Section:12 mm x 16 mm
• Max. Protection Height:2,500 mm
• Housing Material:Natural anodized aluminium
• Enclosure Rating:IP67
• Temperature Range:-40c – +60c

Warranty:12 Months
