Features:

• Easy to install
• Quiet and efficient to run
• Security +2.0
• Bright LED Lights
• Premium Automatic Safety Reverse
• Automatic Force Sensing
• Manual Release
• MYQ Compatible

Remotes Included: 2 + 1 Wall Button

Included:

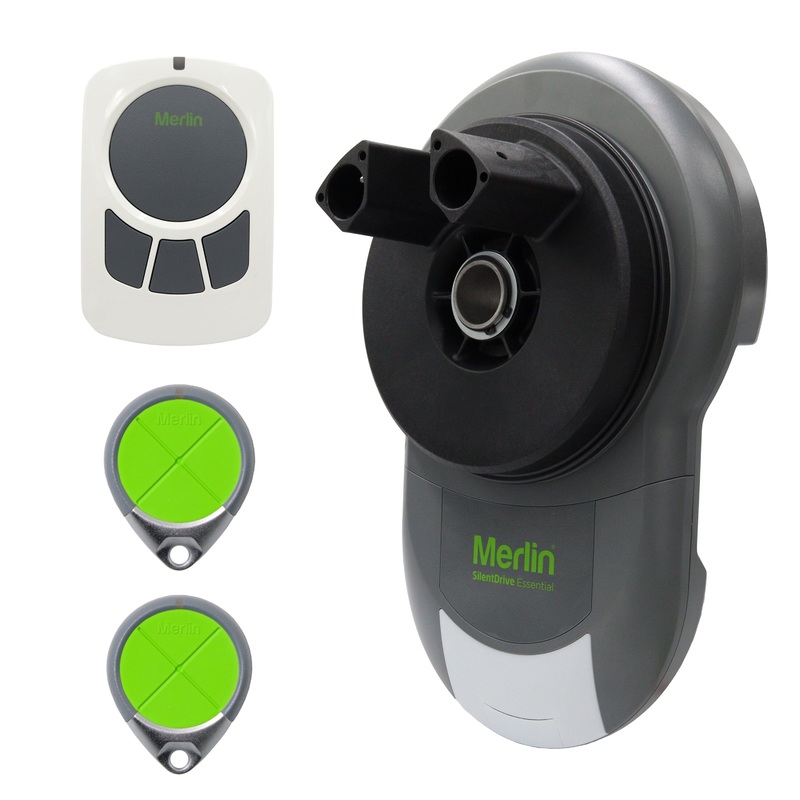

1 x MERLIN MR655MYQ SilentDrive Essential Roller Door Motor
2 x Premium E970M remotes
1 x E148M Wireless Wall Button
1 x Weight Bar
1 x Installation Instructions
5 Years Manufacturers Warranty*

Specifications:

General

• 24 DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area up to 16.5m2
• Drum rotations: 4.5
• Max Door weight: up to 100kg
• Max peak pulling force: 500N
• Minimum side room 45mm
• 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
• Up to 64 memory registers
• Courtesy light: LED
• Noise rating: 1M 57DB

Door Specs

• Maximum lifting under spring tension = 20kg
• Suitable for steel spring balanced doors

Door Opening and Closing Times

• Door opening time: 13 seconds
• Door closing time: 13 seconds
• Based on a 2.4m high door

Door Height

• Door height: 4.5m, 3.0m
• Door width: 3.6m, 5.4m
• Single dwelling

Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 5 year warranty applies.
