Merlins Commander Essential is small in size, big on features.

This sectional garage door opener has the latest security and multi frequency technology, and includes a 5 Year Warranty.

5 Year Warranty Terms & Conditions apply.

Garage Door Opener and Garage Door to be professionally serviced during 24 to 36 months of the Chamberlain Limited Warranty period. See the last page of the Installation Manual for detailed warranty conditions.

myQ is compatible with iOS devices running iOS 11 or newer, and Android devices running Android 7 or newer. Before purchasing or installing myQ on your device, please ensure you have access to a device with the appropriate firmware.

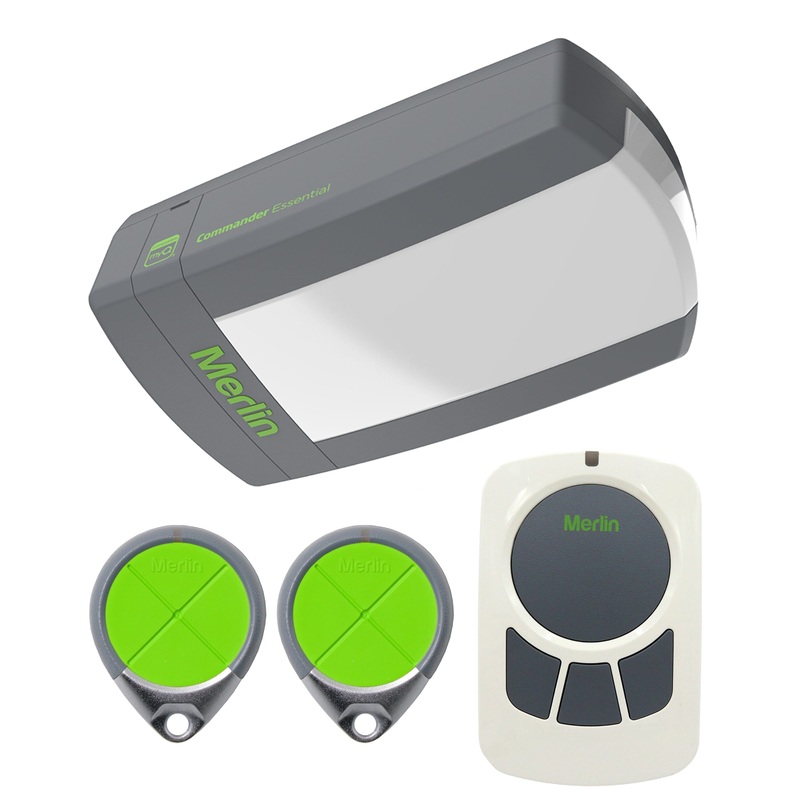

Includes:

• 1 x Merlin Commander Essential MS65MYQ
• 2 x Premium E970M remotes
• 1 x E138M Wireless Wall Button
• 1x Tilt Rail
• 1 x Installation Instructions
• 5 Years Manufacturers Warranty*

Please Note: The rail is not included

Features:

Premium Automatic Safety Reverse

• With its automatic safety function your garage door will stop and reverse automatically if obstructed going down or stop going up.

Automatic Force Sensing

• Equipped with automatic force sensing, with each operation the garage door opener monitors and adjusts the force needed to open your garage door.

Manual Release

• In case of power failure you can simply activate the manual release to open your garage door.

Specifications:

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area up to 13.5m
• Max door weight: up to 90kg
• Max peak pulling force: 600 N
• C-rail with belt drive
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 64 memory registers
• Courtesy light: LED
• Min headroom required: 30mm

• Maximum lifting under spring tension = 20kg
• Suitable for steel and timber spring balanced doors

• Door opening time: 18 seconds
• Door closing time: 21 seconds
• Based on a 2.2m high door

• Door height: 2.4m
• Doubledwelling

Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.
