Technical Information

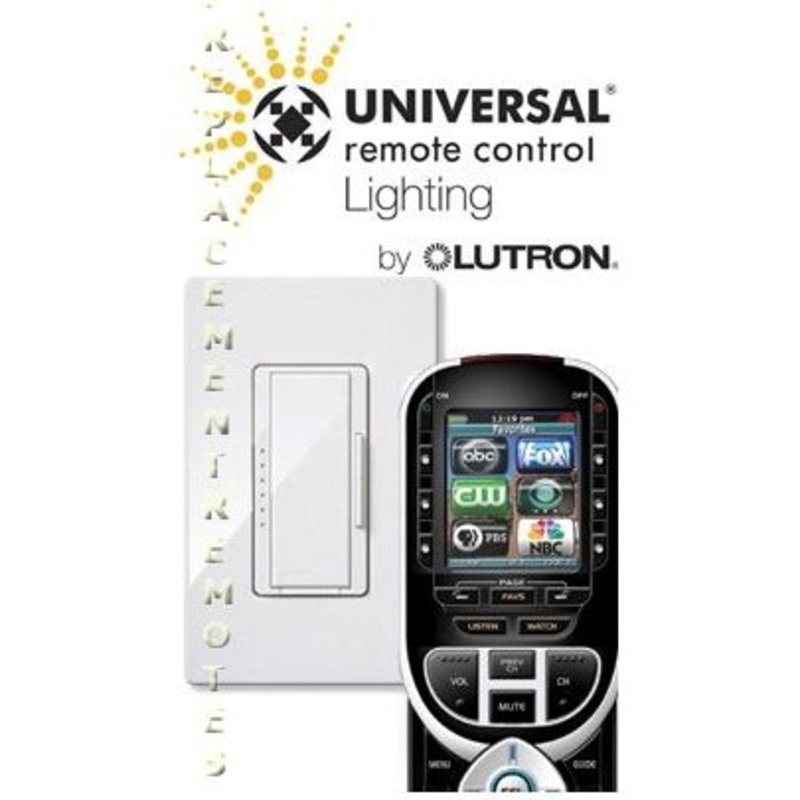

Individual URC RF Dimmers, RF Lamp Dimmers and RF Switches can store up to three (3) “Lighting Addresses.” Each address has twelve (12) commands:

• On
• Off
• Brighten
• Dim
• Scenes 1~8

In a typical installation, addresses might be applied as in one of the following:

With one address stored in all dimmers:

• Eight (8) Lighting Scenes involving all RF Dimmers and RF Switches.
• On, Off, Brighten and Dim control ALL the dimmers in the room.

With one address stored in all dimmers and one unique address stored in each dimmer:

• Eight (8) Lighting Scenes involving all RF Dimmers and RF Switches.
• All: On, Off, Brighten and Dim.
• Each: On, Off, Brighten and Dim individually.

With two addresses stored in all dimmers and one unique address stored in each dimmer:

• Sixteen (16) Lighting Scenes involving all RF Dimmers and RF Switches.
• All: On, Off, Brighten and Dim.
• Each: On, Off, Brighten and Dim individually.

Specifications

• RF Freq: 418MHz
• Range: RF (radio frequency) 50 to 100′ depending upon the environment
• Warranty: 1 year parts & labor when purchased from an authorized dealer
