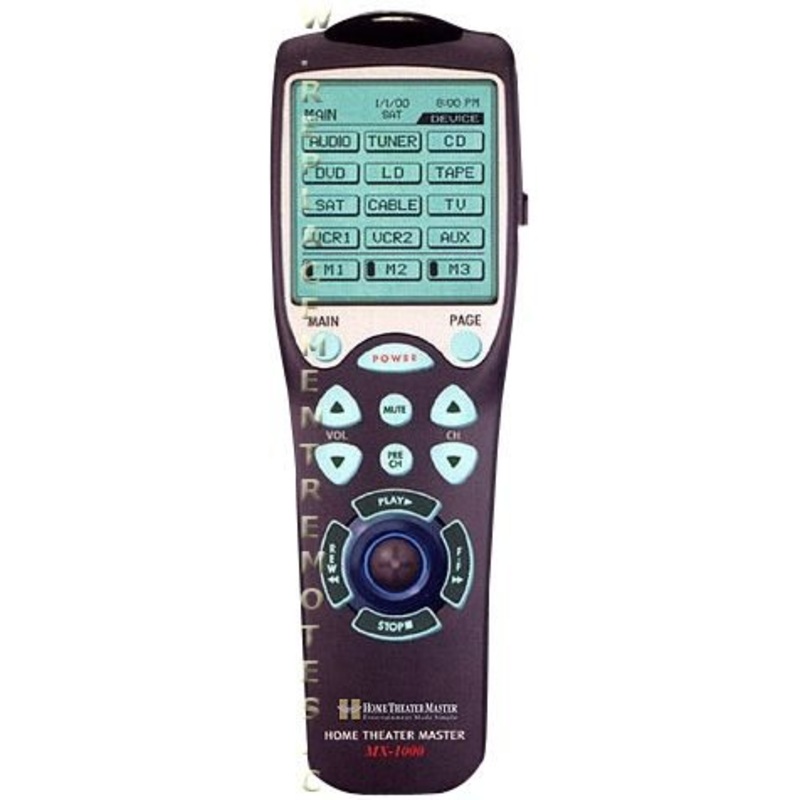

Specifications

• Remote Type: Preprogrammed and Learning LCD Touchscreen with Joystick Operation
• Display: LCD Touchscreen with 50 customizable pages
  Total of 4 display pages per each of the 12 devices (components)
  Two LCD pages for device buttons
  Up to 14 distinct buttons or commands per each screen (or page)
• Size: 8.9″ x 2.9″ x 1.5″ (L x W x H)
• Weight: 10.2 oz (with batteries)
• Learning Capabilities: Learns up to 780 commands via infrared from device remote controls
• Macro Capabilities: Sends out multiple commands at once
  M1, M2, M3 keys send out 28 commands each
  12 device buttons that send up to 14 commands each
  60 favorite channel buttons send out 12 commands each
• Memory: 4 MB non-volatile SRAM
• Preprogrammed: For over 1,000 audio and video components (devices)
  Set-up is easy using three digit preprogrammed code numbers
• Joystick: Provides quick access to device options w/thumb
• PC Interface: RS-232, 3 wire mini-plug (included) for connectivity with your PC to program the remote control and download update versions of the operating system
• Commands: 64 touchscreen commands per device
  13 hard button commands and five joystick commands per device
• Punch: Punch Through operations of any of the 12 devices from any of the 12 devices for Volume, Channel and Transport (Play, Stop, Fast Forward, and Rewind)
• Custom: The LCD screen and buttons feature “EL” Backlighting Illumination – duration can be adjusted according to personal preference
  The function beep sound, low-battery warning, set clock/date, and LCD contrast levels can all be adjusted
• Power Supply: 4 AA alkaline (Duracells Included)
  Configurable automatic shut-off
• Warranty: 1 year parts & labor
